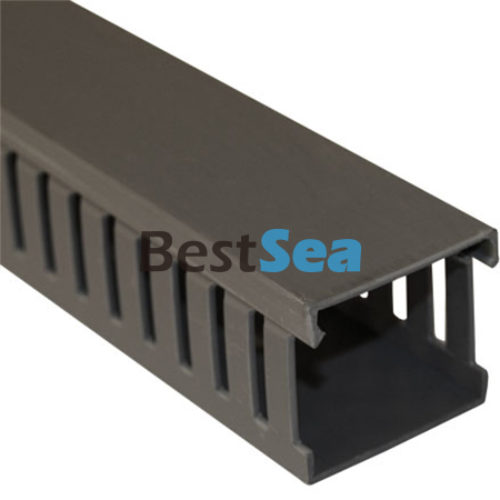

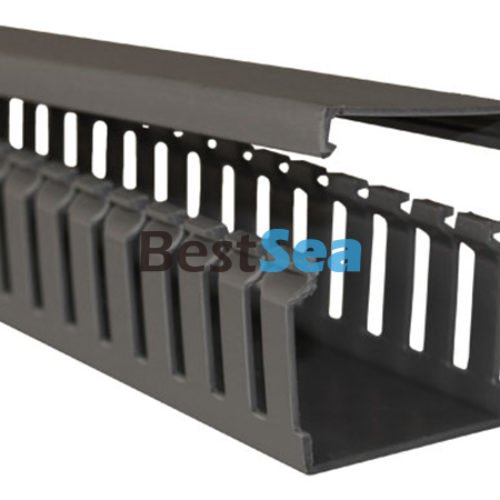

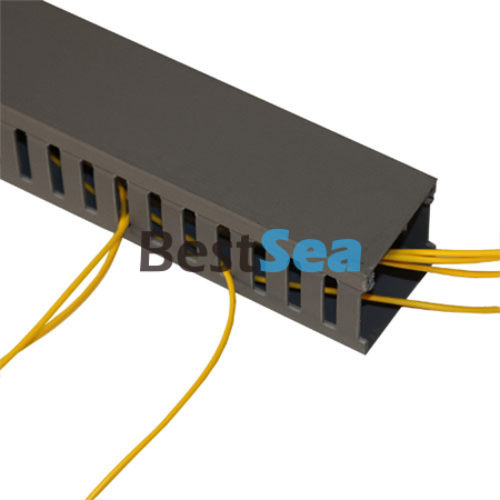

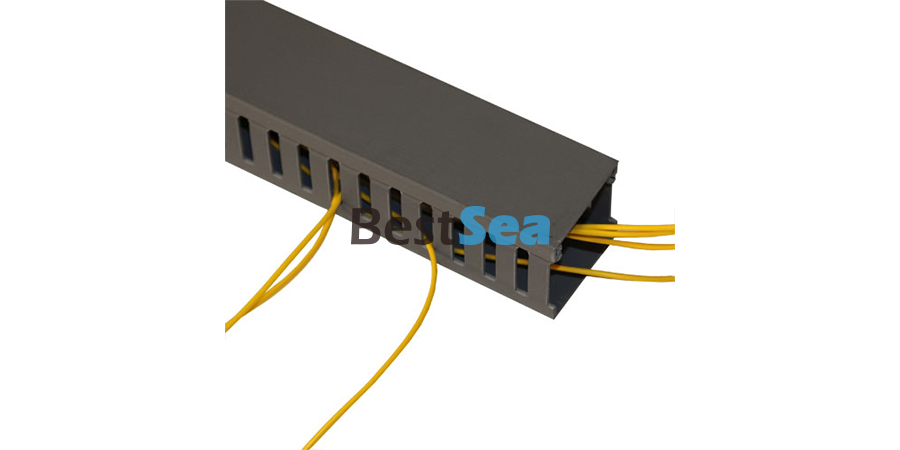

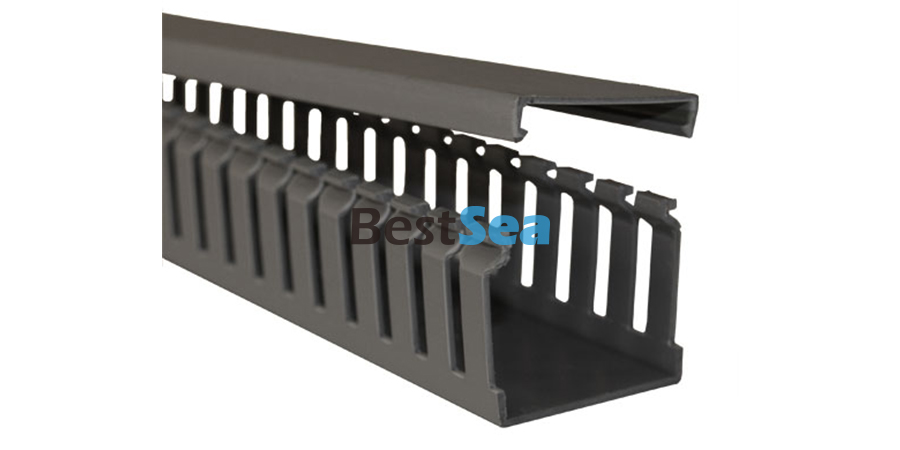

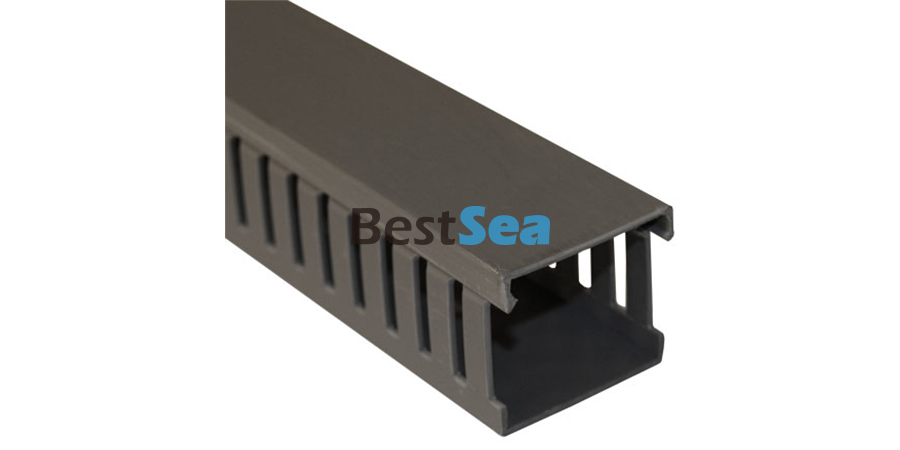

Wall Cable Duct
This wiring duct is an economical solution to managing your wires and cables. Each 2 meter (6.6 ft) section has pre-drilled mounting holes at 4″ to 5″ intervals for easy installation.
The material used is a high impact, self extinguishing, wrap proof PVC made with Lead free ROHS material. The material is UL 94 and V0 rated to survive continuous use at high temperatures. The CE marking confirms the compliance of a product with all the EU regulation that apply for the product in general.
Made of heat-resistant PVC (up to 85°C)
2 meter (6.6 ft) length fits most computer cabinets
Easily cut to length with a wire duct cutter
Covers included
Model No | Length | Width | Height | Wall Thickness | Color |
---|---|---|---|---|---|
BS-NFCD-2015 | 2 Meter | 20mm | 15mm | 2mm | Blue/White |
BS-NFCD-2525 | 2 Meter | 25mm | 25mm | 3mm | Blue/White |
BS-NFCD-3020 | 2 Meter | 30mm | 20mm | 4mm | Blue/White |
BS-NFCD-3025 | 2 Meter | 30mm | 25mm | 5mm | Blue/White |
BS-NFCD-3030 | 2 Meter | 30mm | 30mm | 6mm | Blue/White |
BS-NFCD-3035 | 2 Meter | 30mm | 35mm | 7mm | Blue/White |
BS-NFCD-3040 | 2 Meter | 30mm | 40mm | 8mm | Blue/White |
BS-NFCD-3525 | 2 Meter | 35mm | 25mm | 9mm | Blue/White |
BS-NFCD-4025 | 2 Meter | 40mm | 25mm | 10mm | Blue/White |
BS-NFCD-4030 | 2 Meter | 40mm | 30mm | 11mm | Blue/White |
BS-NFCD-4040 | 2 Meter | 40mm | 40mm | 12mm | Blue/White |
BS-NFCD-4433 | 2 Meter | 44mm | 33mm | 13mm | Blue/White |
BS-NFCD-4525 | 2 Meter | 45mm | 25mm | 14mm | Blue/White |
BS-NFCD-4533 | 2 Meter | 45mm | 33mm | 15mm | Blue/White |
BS-NFCD-4545 | 2 Meter | 45mm | 45mm | 16mm | Blue/White |
BS-NFCD-4565 | 2 Meter | 45mm | 65mm | 17mm | Blue/White |
